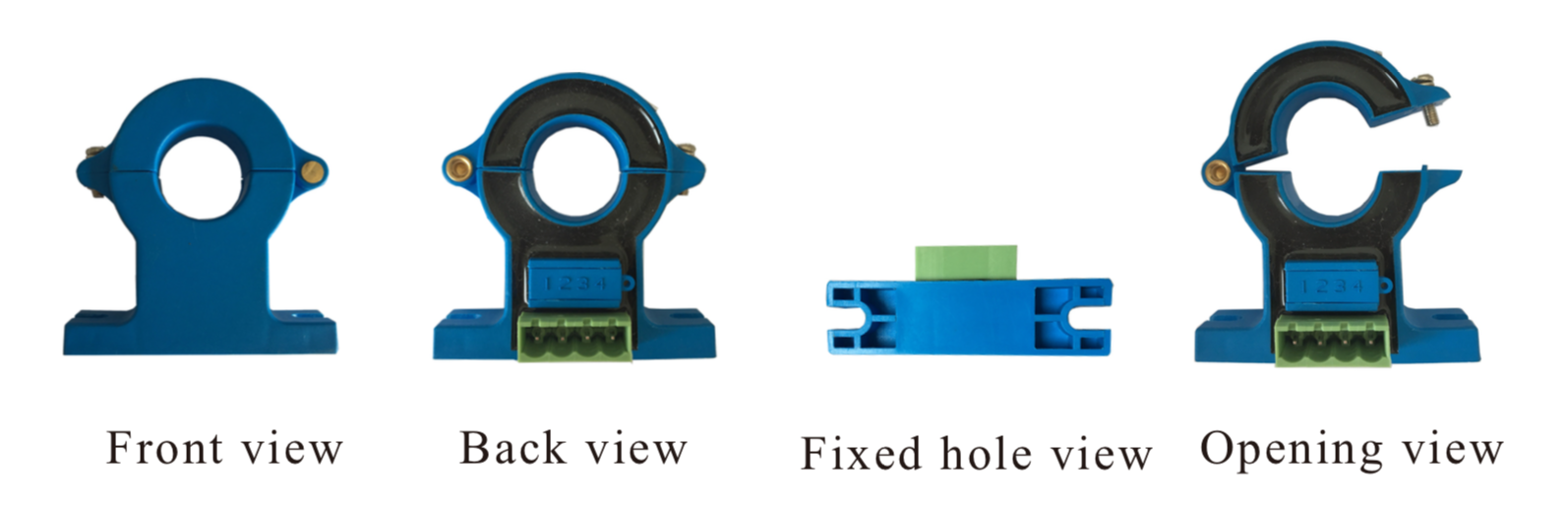

HALL SPLIT CORE CURRENT SENSOR

• Open loop split core type,Sub-plate mounting type. Detect DC,AC and pulse current.
• Technical index:
• Flame resistance：UL94-V0
• Operating temperature：-10～+70℃
• Storage temperature：-25～+70℃
• Bandwidth：DC～25kHz
• Dielectric strength：2.5KV 50Hz 1min

Product features

• Light weight
• Low power consumption •Good linearity
• No insertion loss
• Fast response time
• Good anti-interference ability

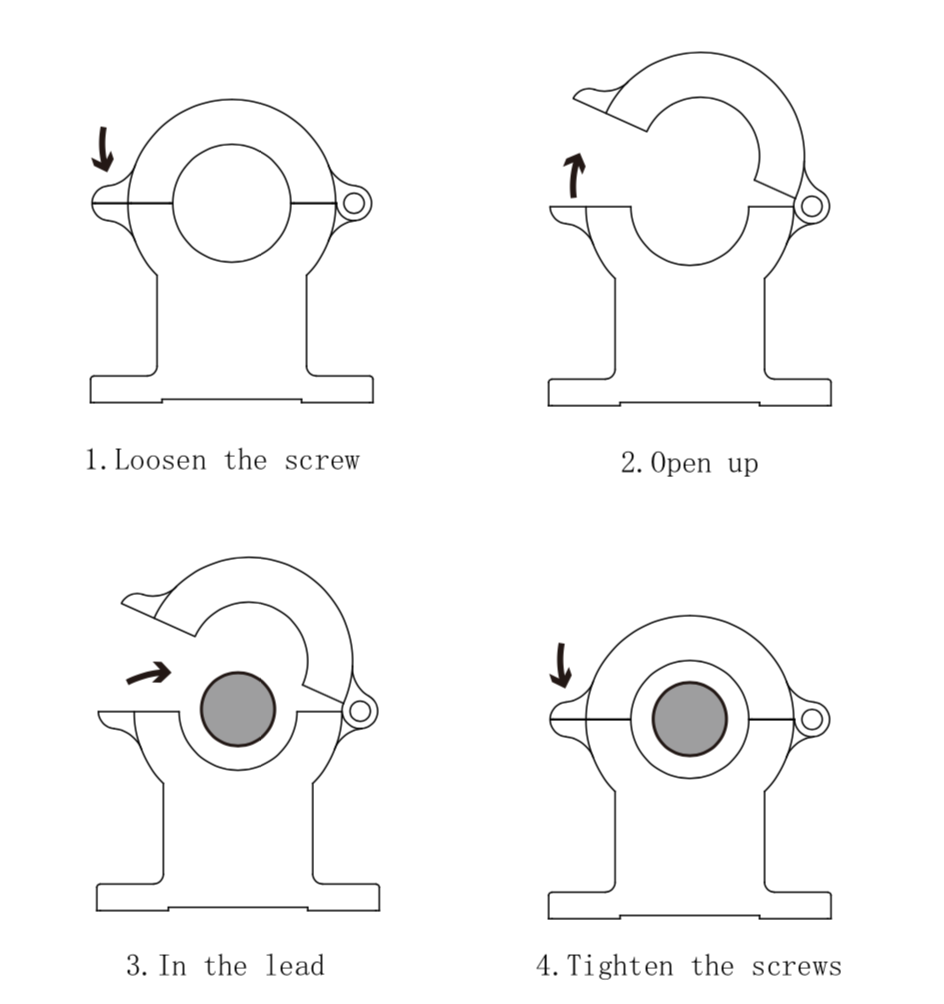

Instructions for use:

• According to the connection mode of correct connection
• The direction shown by the arrow is positive
• With hole measurement, response time and following the speed for the best 4.Faulty wiring can lead to product damage and output uncertainty

SPECIFICATIONS

Model	PB-B-100	PB-B-600
Useage	Monitors single string current
Measurement Range	0-100A, ±1%	0-600A, ±1%
max Range	±150A	±800A
Environmental
Power Requirements	0.5W  , Bus power supply
Protection	Fused power circuit and measurement circuit
Installation	Mount on battery or DIN rail
Communications Interface	RJ45 connect,meets Modbus
Insulation	2000VAC
Product size	80mm*50mm*26mm
Operating temperature:	-5℃-50℃, 5%-90%RH
Storage temperature:	-10℃-85℃, 5%-90%RH
